Air Compressors
CEF’s oil-free, oil-less non-articulating piston compressors are workhorses of the aerospace and defense industry. Available in several sizes and proven to last for decades in extreme operating conditions, CEF compressors provide clean air power to support mission-critical systems.
Dynamically balanced and built with high-performance, corrosion-resistant materials, CEF compressors are designed to minimize weight while maintaining high reliability for comparable performance criteria.
Supported by a worldwide distributor and service network, our compressors are an industry standard for potable water applications across commercial, military, regional, business jet, and helicopter markets. CEF compressors are also used in radar systems, weapon systems, icing systems, and other high-pressure pneumatic applications.
With thousands of units in the field, CEF piston compressors are serviceable with overhaul manuals and spare parts kits.
Key Features
- Excellent MTBF (mean time between failures) for high reliability
- Qualified to RTCA DO-160D
- Low weight
- Built-in motor thermal protection
- Offered in three-phase 400 Hz, 115/200 VAC, or 28 VDC configurations
- Oil-less design delivers clean, uncontaminated compressor air
- Precision-balanced, cantilevered stainless steel crankshaft design for long life
- All models rated for 100% continuous duty cycle
- Self-lubricating Teflon piston cup designed for oil-less compressor service using specially formulated long-life material
- Cast-aluminum heads and cylinders are finned to maximize heat transfer and anodized for corrosion resistance
- Multiple input and output pneumatic connector and filter options
- Multiple electrical connector and mounting plate configuration options
- Stainless steel valve diaphragm helps maintain pump efficiency by resisting corrosion and reducing valve seat contamination
- Belt-driven option available for quieter operation

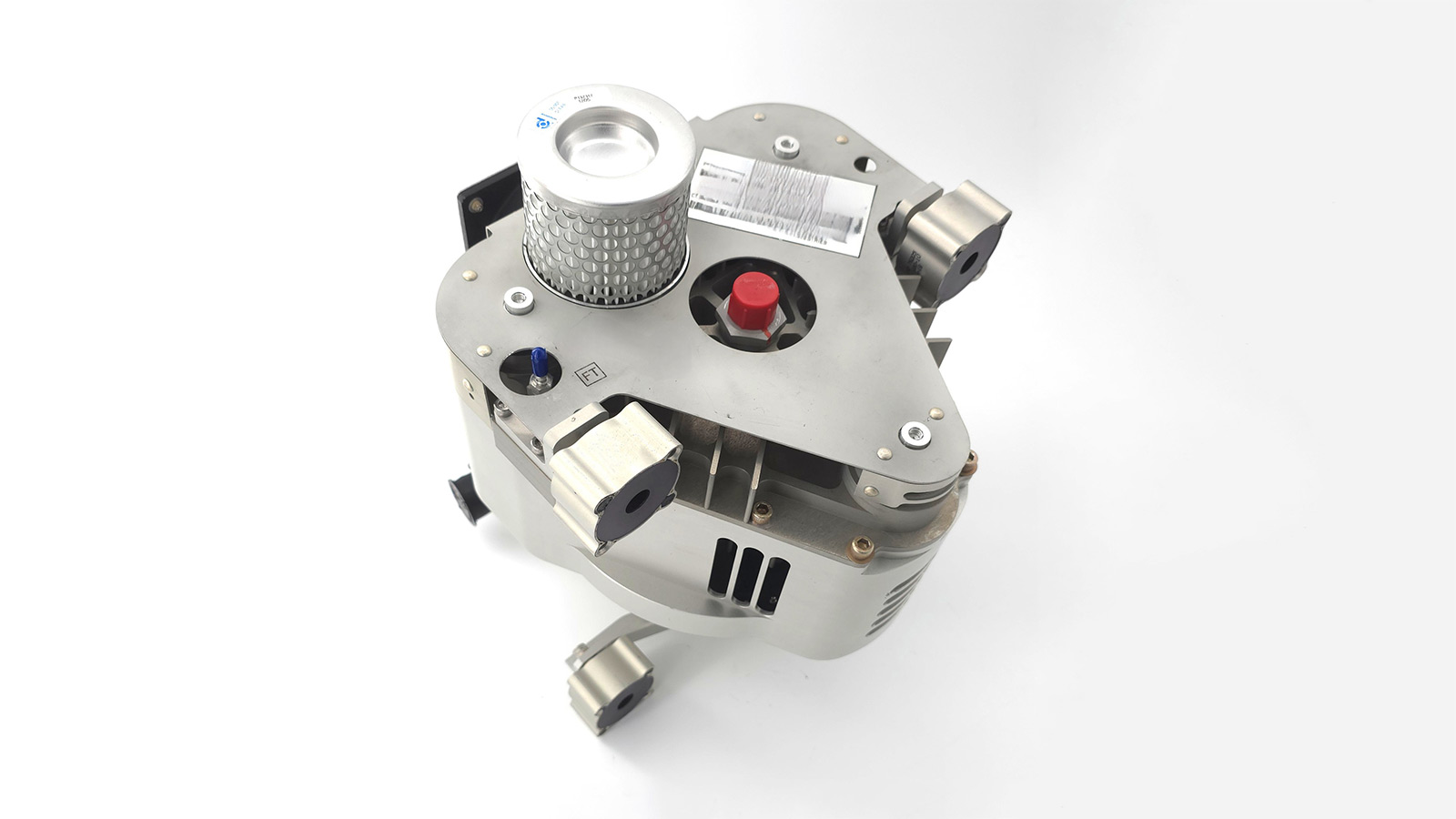

For the A380, CEF designed a scroll compressor to accommodate the high pressure and flow requirements of the potable water system. Scroll compressors are positive displacement devices that use two inter-fitting Archimedes spiral-shaped scroll members to compress air.
One scroll remains fixed while the other rotates eccentrically. Air is drawn in through a port at the outside diameter and compressed as it moves toward the center, where it exits.
This design offers advantages for aircraft applications. The scroll compressor can use less energy than a piston compressor to produce similar airflow and pressure. Scroll compressors can also run more smoothly, operate more quietly, fit into tighter spaces, and use fewer moving parts, which can increase reliability.
We're ready to connect
Need an oil-less air compressor for potable water pressurization or another pneumatic application? Contact CEF Industries to discuss operating conditions, performance requirements, and integration constraints.
